What Is Epoxy Flake Flooring? The Most Popular Garage Floor in Jacksonville
If you are researching property upgrades, you might be wondering exactly what is epoxy flake flooring. Our team sees property owners demanding more from their garages every single year.
A specialized vinyl chip floor does more than just look good.
We consistently recommend these systems because they solve the most common concrete issues permanently. Recent 2025 national housing data shows that professional flooring upgrades deliver a return on investment between 70% and 80%.
We proudly install these durable finishes as part of our core flake floor services. The following sections will break down the science behind this popular Jacksonville installation and explain why it performs so well.
How a Flake Floor Is Built
Our installation process treats the garage floor as a multi-layered system rather than a simple coat of paint. A professional multi-layer application in the US averages between $5 and $12 per square foot in 2026, depending on the exact specifications.
We apply these layers in highly controlled stages to guarantee maximum adhesion. The application involves five essential steps:
- Diamond grinding. We use specialized machines with diamond-embedded discs to grind the surface. This step achieves a Concrete Surface Profile (CSP) of 2 or 3, which is the standard set by the International Concrete Repair Institute for optimal adhesion.
- The epoxy base coat. We roll a 100% solids epoxy base coat directly across the prepared slab. High-solids materials prevent shrinkage and bubbling as the floor cures.

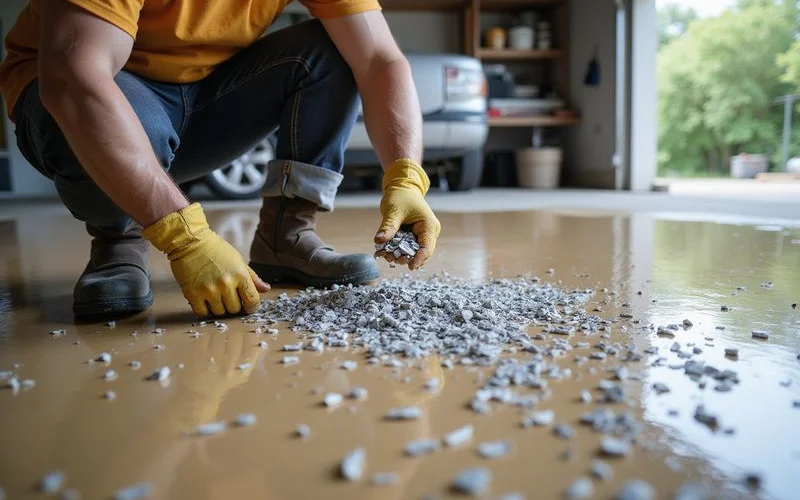

- The flake broadcast. Our technicians throw vinyl flake chips by hand into the resin while the base is still wet. The installer tosses flake continuously until the surface reaches the target coverage rate.
- Scrape-back. We scrape away any loose, unbonded flake once the base cures. This critical step leaves a smooth, even texture that is ready for the final seal.
- The polyaspartic topcoat. Our team seals everything with a clear polyaspartic topcoat to lock the flake permanently into the floor. This advanced chemical cures much faster than traditional epoxy, usually allowing foot traffic within 24 hours.
Full-Flake vs Partial-Flake Coverage
Our clients often ask how much texture they actually need. The volume of the broadcast changes both the visual appeal and the performance of the finish. We typically explain the choice by comparing material weights per square foot.

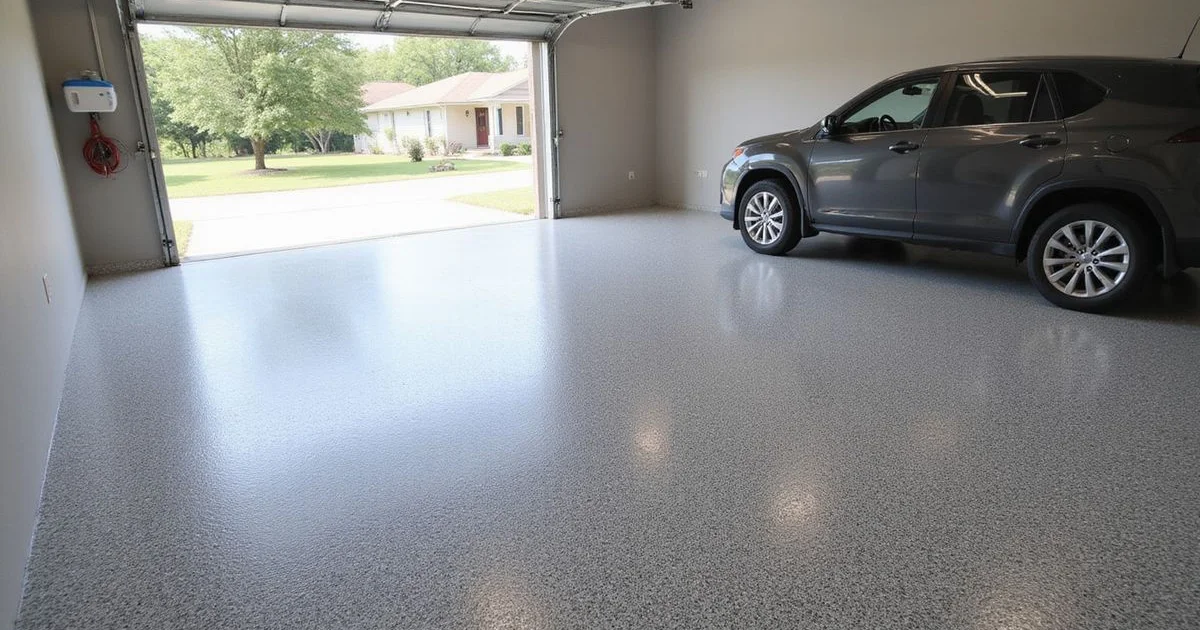

- Full-flake coverage: A true full broadcast requires approximately 10 pounds of flake per 100 square feet. Our installers throw flakes until the wet epoxy simply cannot absorb any more material. This complete coverage hides the base color entirely and masks concrete imperfections beautifully.
- Partial-flake coverage: This lighter method utilizes about 1 to 5 pounds of flake per 100 square feet. We suggest partial coverage for business owners who prefer a subtle, minimalist aesthetic in their showrooms. The lighter application leaves the base coat color visible between the chips.
Our team always recommends a full broadcast to rejection for residential garages.
Why flake is so durable
The flake is never just loose decoration sitting on top of the concrete. We ensure it is permanently locked under a thick polyaspartic topcoat as an integrated part of the floor. This clear chemical layer guarantees the colored chips cannot peel, lift, or wash out over time.
Color Blends and Flake Size
We offer incredible customization options for every flooring project. The two main variables to consider are the specific color blend and the physical dimension of the chips. Our designers provide dozens of pre-mixed options, ranging from neutral grays to bold accent palettes.
Standard 1/4-inch flakes provide a dynamic coefficient of friction that helps meet Occupational Safety and Health Administration (OSHA) safety guidelines. We prioritize this 1/4-inch size because it dramatically increases slip resistance in wet environments. Smaller 1/16-inch mini-flakes create a smoother, terrazzo-like appearance for indoor spaces. Our installers sometimes apply an extra topcoat over these tiny flakes to ensure a perfectly smooth, continuous finish.
| Flake Choice | Visual Effect | Practical Benefit |
|---|---|---|
| Full-flake | Dense texture with no base color showing | Masks 100% of concrete imperfections |
| Partial-flake | Subtle speckle with visible base coat | Creates a clean, minimalist aesthetic |
| Larger flake (1/4 inch) | Bolder, aggressive texture | Maximizes slip resistance for wet safety |
| Mini flake (1/16 inch) | Finer, uniform terrazzo style | Provides a smoother walking surface |
All these elements work together to deliver an incredibly resilient surface. Our clients consistently choose a flake garage floor because it handles daily vehicle traffic without sacrificing aesthetic appeal. Understanding what is epoxy flake flooring helps you make an informed decision for your next renovation. We invite you to contact our team today to schedule a free concrete evaluation and see these color blends in person.
