Our crew tears up failing garage coatings every single week across the US, and the underlying culprit is almost never a defective product. The problem usually points directly to inadequate concrete preparation.
We treat our grinding services as the most critical phase of any project, because proper diamond grinding for epoxy dictates the entire lifespan of the floor. A premium resin applied to a slick slab will eventually peel.
That is a guarantee.
The Step That Decides Everything
Diamond grinding physically cuts into the top layer of concrete to create a textured, porous surface that epoxy can permanently grip. This mechanical concrete prep for epoxy decides whether your new floor lasts 15 years or peels up on the next hot summer day.
Our data from recent 2026 industry reports shows that replacing a failed DIY floor costs an average of $3 to $5 per square foot just for the removal in the US. Many budget-conscious buyers skip grinding to save a few dollars upfront.
That decision quickly becomes a massive financial mistake.
We see property owners forced to pay for full chemical stripping and intensive manual labor just to fix a poorly prepped surface. Here is exactly what happens when mechanical profiling is ignored:
- Weakened Adhesion: The epoxy sits on top of the slab like a sticker rather than soaking deep into the pores.
- Hot Tire Pickup: Warm vehicle tires easily melt the weak bond and rip the coating right off the concrete.
- Trapped Contaminants: Old oil stains and failing sealers remain trapped under the surface to cause massive blistering later.
- Massive Removal Fees: Stripping a ruined floor requires intensive labor that easily dwarfs the original installation price.
How a Coating Actually Bonds
An epoxy coating bonds mechanically by sinking deeply into an open, roughened concrete surface and locking into place as it cures. The resin needs microscopic peaks and valleys to grip, which smooth troweled concrete simply does not provide.
We measure this necessary texture using the Concrete Surface Profile, or CSP. The International Concrete Repair Institute (ICRI) created this standardized scale to guarantee accurate prep work across the US.
Residential epoxy systems demand a CSP 2 to 3 rating to ensure long-term durability. Industrial floors require a more aggressive CSP 4 to 6 rating because they face heavy forklift traffic and harsh chemical spills.
Our crews use specialized tooling to hit these exact numbers on every single job.
The table below outlines the exact requirements for a successful installation.
| CSP Rating | Texture Appearance | Best Preparation Method | Ideal Coating Type |
|---|---|---|---|
| CSP 1-2 | Very smooth, like fine sandpaper | Acid Etching or Light Grinding | Thin sealers, simple paints |
| CSP 2-3 | Medium grit sandpaper | Standard Diamond Grinding | High-build residential epoxy, polyaspartic |
| CSP 4-6 | Coarse, heavy texture | Heavy Grinding or Shot Blasting | Industrial urethanes, thick trowel downs |
What Diamond Grinding for Epoxy Does

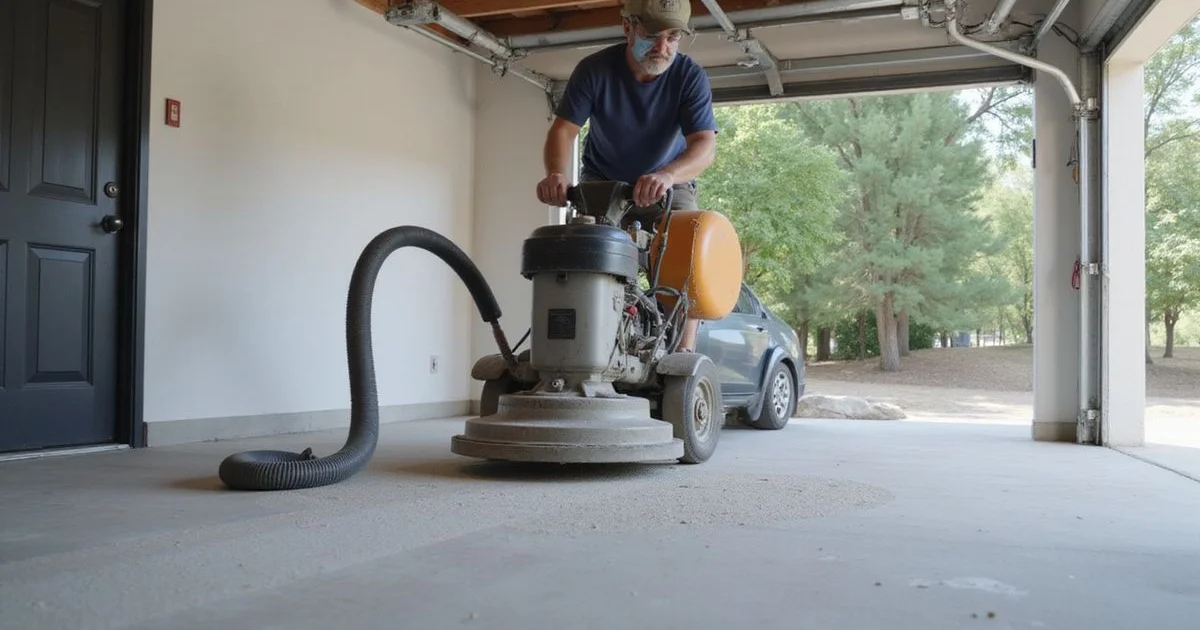

A planetary diamond grinder uses rotating metal-bond diamond segments to scrape away the top layer of your concrete slab. This machine simultaneously removes old contaminants and carves the perfect texture into the floor.
We typically rely on heavy-duty planetary grinders from trusted brands like Lavina or HTC for this critical phase. These units utilize three or four smaller rotating heads that spin independently while the main base turns.
That dual-action movement ensures perfectly even pressure across the entire slab.
Our standard protocol uses aggressive 30-40 grit diamonds to cut through the hardest surfaces efficiently. The grinder accomplishes three vital tasks at once:
- Eradicates Laitance: Grinding easily tears through laitance, which is a weak, dusty layer of cement paste that naturally forms on top of curing concrete.
- Establishes the CSP: A pass with the right tooling consistently opens the pores to that critical ICRI CSP 2-3 standard.
- Levels Minor Imperfections: The heavy weight of the machine flattens out high spots and minor bumps for a flat final finish.
Why acid etching fails
Acid etching uses harsh muriatic or citric chemicals to burn a microscopic profile into the slab. When weighing acid etch vs diamond grinding, always remember that etching typically only achieves a minimal CSP 1 rating. It does absolutely nothing to remove hard sealers or deep oil stains. A coating bonded to an acid-etched slab starts with a built-in failure point because the concrete pores remain completely clogged.
How Proper Prep Prevents Delamination
Proper surface preparation prevents delamination by giving the epoxy a deep, physical anchor point inside the concrete itself. When the resin locks into a mechanically profiled slab, it can withstand the extreme pulling force of hot vehicle tires without lifting.
We frequently see moisture vapor transmission and poor adhesion working together to destroy un-prepped floors. A weak bond gives way immediately when normal stresses enter the equation.
Here are the three fastest ways a weak bond destroys a floor:
- Thermal Shock: Sudden temperature changes cause the concrete and coating to expand at different rates, snapping weak bonds instantly.
- Point Loading: Heavy equipment or vehicles concentrate extreme weight on a small area, cracking surface-level finishes.
- Moisture Vapor: Hydrostatic pressure pushes water vapor up from the soil, popping the un-anchored epoxy right off the slab.
Our process eliminates these specific failure modes entirely.
You can read our complete guide on shot blasting vs grinding to understand the heavy-duty industrial side of preparation.
For any standard floor installation, relying on proper mechanical grinding is never optional.
We encourage you to schedule a professional site evaluation before starting any coating project. Getting the surface profile right the first time with professional diamond grinding for epoxy will save you thousands of dollars in the long run.
